From a first meeting at an exhibition to a fully equipped production line — SENBSEN completes a four-machine installation at Thrithala, Palakkad, Kerala.
Installation Location: Green Hills, Thrithala, Palakkad, Kerala – 679576
📺 Want to see the installation live? Watch the video on YouTube.
Installation Overview
The customer first connected with SENBSEN through an exhibition. Since SENBSEN was a new brand for them, they took the time to understand our machines, technology, product quality, and service support.
After evaluating the machines and discussing their requirements with our team, the customer developed confidence in SENBSEN's machine performance and after-sales support. Based on this trust, they decided to purchase multiple woodworking machines for their production setup.
The customer was satisfied with the overall machine quality, installation process, service, and support provided by the SENBSEN team.
Customer Partners: Aneex, Adnan, Fazil, Siraj, and Ziyad
Machines Installed
The following machines were successfully installed at the customer's facility:
F45M Panel Saw Machine
SCP48/60/1 60 Ton Cold Press Machine
SBS-THB3L Multi Boring Machine
Together, these machines provide an efficient solution for different stages of furniture manufacturing and industrial woodworking, including panel cutting, edge finishing, drilling, and pressing.
SBS-668DBS Automatic Edge Banding Machine
The SBS-668DBS Automatic Edge Banding Machine is designed for accurate and efficient edge finishing in furniture and panel processing applications.
The machine is the SBS-668DBS model, an Automatic Edge Banding Machine with a total power of 19.1 kW, running on 415V / 50Hz / 3 Phase supply. It has a machine size of 5800 × 900 × 1600 mm and is manufactured by SENBSEN Woodworking Machinery Manufacture Co., Ltd.
The machine helps improve edge finishing consistency and supports efficient production for modular furniture and other woodworking applications.

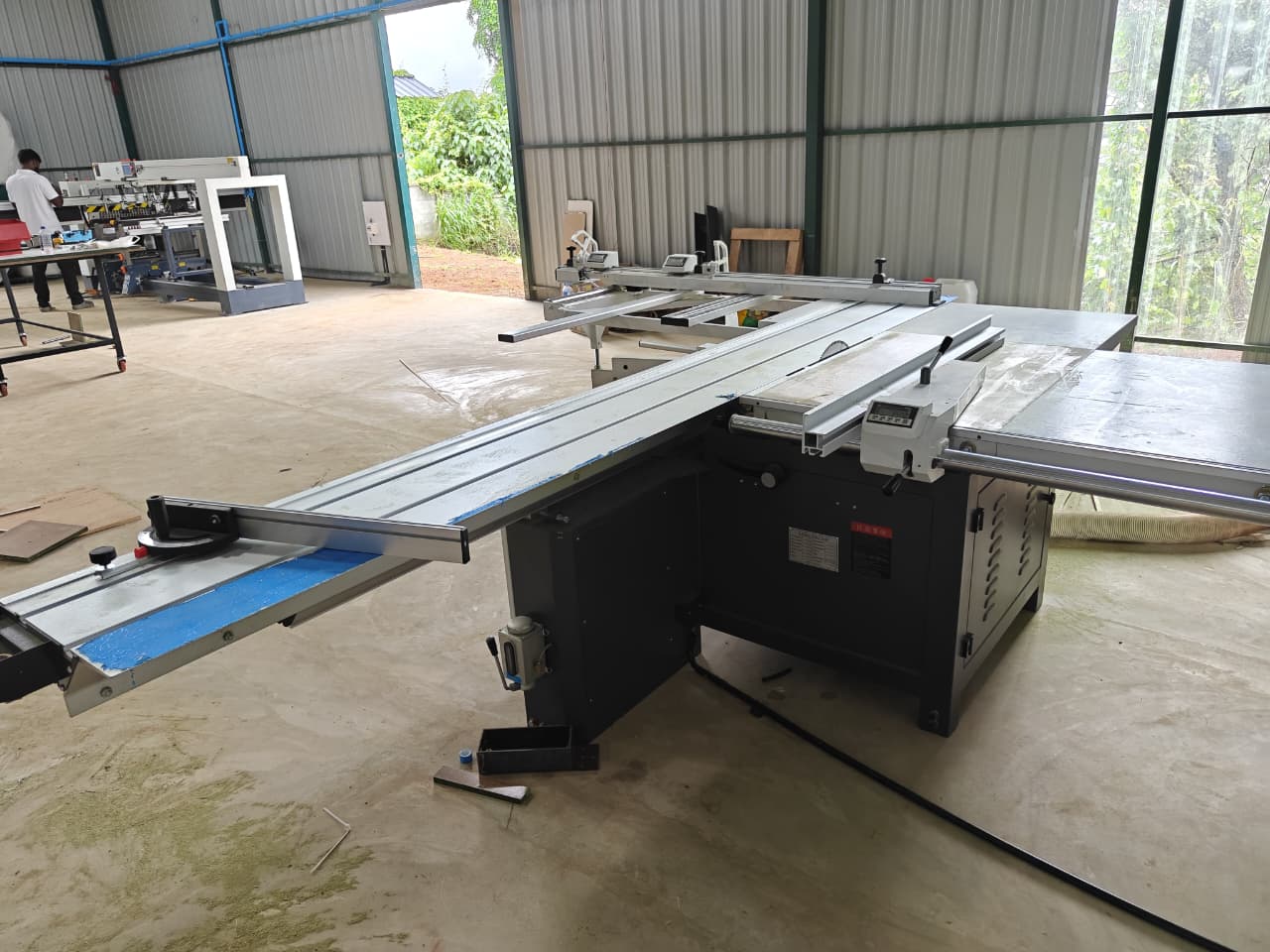

F45M Panel Saw Machine
The F45M Panel Saw Machine is designed for precise and efficient panel cutting. It can be used for processing plywood, MDF, particle board, and other panel materials used in furniture manufacturing.
The F45M runs on a 415V, 3 Phase, 50Hz power supply (customization available) with a main spindle power of 5.5 kW / 7.3 HP and a scoring spindle power of 1.1 kW. It has a sliding table length of 3200 mm and width of 430 mm, a maximum cutting thickness of 30 mm at 90°, and a maximum cutting length of 3400 mm. The scoring spindle diameter is 20 mm, with a main spindle speed of 4500 / 6000 rpm and a scoring spindle speed of 8500 rpm. The machine features automatic blade tilting from 45° to 90°, automatic blade raise/lower, and a servo automatic rip cutting fence of up to 1300 mm, all controlled through a 12-inch touch screen. The overall machine size is 3600 × 3700 × 1800 mm, and it weighs 950 kg.
The F45M supports accurate panel sizing and helps improve productivity in furniture and industrial woodworking operations.
60 Ton Cold Press Machine
The SCP48/60/1 Cold Press Machine is designed for pressing applications in furniture and woodworking production.
The SCP48/60/1 has a working area of 2500 × 1250 mm (customization available) and a maximum pressure capacity of 60 tons, with a maximum opening of 1000 mm. It runs on 4 kW installed power with an Ø90 × 2 pcs oil cylinder configuration, and operates on a 415V / 50Hz / 3 Phase supply. The machine weighs 2200 kg and has an overall size of 3000 × 1250 × 2500 mm.
The 60-ton capacity provides the required pressure for various panel and furniture pressing applications.
SBS-THB3L Multi Boring Machine
The SBS-THB3L Multi Boring Machine is designed for accurate and efficient drilling operations in furniture manufacturing.
The SBS-THB3L supports a maximum working length of 2440 mm, with a maximum drilling diameter of 35 mm for a single drill and 13 mm for multi-drill operation, and a maximum drilling depth of 60 mm. The drilling bit holder is 10 mm, with a spindle speed of 2840 r/min and a drilling shaft configuration of 21 × 3 = 63 pcs. The drilling motor power is 4.5 kW, running on a 415V / 50Hz / 3 Phase supply. The machine weighs 1080 kg and has an overall size of 3350 × 1130 × 1560 mm.
This machine helps streamline repetitive drilling operations and can improve accuracy and consistency during furniture production.
Installation and Service Support
After the machines reached the customer's facility, the SENBSEN team completed the installation and machine setup. The machines were checked and prepared for operation, with the necessary guidance provided to the customer.
SENBSEN focuses not only on supplying CNC woodworking machines, edge banding machines, panel saw machines, and drilling solutions, but also on providing installation, technical guidance, and after-sales service.
The customer's positive experience with the installation and support further strengthened their confidence in the SENBSEN brand.
Customer Feedback
"The machines are good, smooth in operation, and advanced. Whenever we need service or technical information, the SENBSEN service team is available and responds within 24 hours." — Customer, Green Hills, Thrithala, Palakkad, Kerala
This feedback reflects the importance of reliable after-sales support when investing in woodworking machinery.
Customer Satisfaction
The customer initially came across SENBSEN at an exhibition and was not previously familiar with the brand. After understanding the machines and interacting with the SENBSEN team, they developed confidence in the company's products and service.
Their decision to purchase multiple machines shows the trust they placed in SENBSEN's machine quality and support. The successful installation and positive feedback demonstrate a strong beginning to the customer's relationship with SENBSEN.
Benefits for the Customer
The installation of multiple machines provides the customer with a more organized and efficient production workflow. Key benefits include:
Accurate panel cutting with the F45M panel saw machine
Consistent edge finishing with the SBS-668DBS edge banding machine
Efficient pressing with the 60 Ton cold press
Accurate and repetitive drilling with the SBS-THB3L multi boring machine
Improved production efficiency
Better finishing quality
Reduced manual processing
Consistent results across furniture panels
Better support for modular furniture production
Improved overall industrial woodworking workflow
Other woodworking solutions such as a CNC woodworking machine and Pin Router machine can also be considered depending on the customer's production requirements.
Why Choose SENBSEN?
SENBSEN provides a range of woodworking machinery designed for furniture manufacturers, modular furniture businesses, and industrial woodworking applications. Customers can choose from solutions such as:
Automatic edge banding machines
Panel saw machines
CNC woodworking machines
Drilling machines
Multi boring machines
Cold press machines
Pin Router machines
Other industrial woodworking equipment
Along with machine quality, SENBSEN focuses on installation, operator guidance, technical assistance, and responsive after-sales service.
The experience of this customer — from exhibition interaction to machine purchase, installation, and service support — is an example of how SENBSEN builds long-term customer relationships through both machine performance and service support.
FAQs
What machines were installed at the customer location in Thrithala, Palakkad?
Four machines were installed: the SBS-668DBS Automatic Edge Banding Machine, F45M Panel Saw Machine, SCP48/60/1 60 Ton Cold Press Machine, and SBS-THB3L Multi Boring Machine.
What is the model of the edge banding machine?
The installed edge banding machine is the SBS-668DBS Automatic Edge Banding Machine, with a total power of 19.1 kW.
What is the model of the panel saw machine?
The installed panel saw machine is the F45M, featuring automatic blade tilting, automatic blade raising and lowering, a servo automatic rip cutting fence, and a 12-inch touchscreen interface.
What is the capacity of the cold press machine?
The SCP48/60/1 Cold Press Machine has a maximum pressing capacity of 60 tons.
What is the SBS-THB3L Multi Boring Machine used for?
The SBS-THB3L is used for drilling operations in furniture and panel manufacturing, helping improve drilling accuracy and production efficiency.
Does SENBSEN provide installation and after-sales support?
Yes. SENBSEN provides machine installation, technical guidance, service support, and after-sales assistance to customers.
Does SENBSEN manufacture CNC woodworking machines and Pin Router machines?
Yes, SENBSEN offers a range of woodworking solutions, including CNC woodworking machines, Pin Router machines, drilling machines, edge banding machines, panel saw machines, and other industrial woodworking equipment.
Conclusion
The successful installation of the SBS-668DBS Edge Banding Machine, F45M Panel Saw Machine, 60 Ton Cold Press Machine, and SBS-THB3L Multi Boring Machine at Green Hills, Thrithala, Palakkad, marks another successful SENBSEN customer project.
The customer initially discovered SENBSEN through an exhibition and, after understanding the machines and service support, placed their trust in the brand. Their positive feedback about the smooth machine performance, advanced features, and responsive service team highlights the importance of both product quality and after-sales support.
SENBSEN is committed to supporting furniture manufacturers with reliable edge banding machines, panel saw machines, CNC woodworking machines, drilling machines, Pin Router machines, and industrial woodworking solutions.
