SENBSEN completes the successful installation of the F45DK Panel Saw Machine, helping a furniture manufacturer in Bangalore achieve faster, more accurate panel cutting.
Accurate, high-speed panel cutting is the foundation of efficient furniture manufacturing. SENBSEN recently completed the successful installation of the F45DK Panel Saw Machine at a furniture manufacturing unit in Bangalore, strengthening the customer's cutting capacity and precision on the shop floor.
📺 Want to see exactly how the machine was installed and set up? Watch the installation video on YouTube.
F45DK Panel Saw Machine — Technical Specifications
Power Supply: 415V, 3 Phase, 50Hz (Customized Available)
Main Spindle Motor Power: 5.5 kW (7.3 HP)
Scoring Spindle Motor Power: 1.1 kW
Sliding Table Size: 3200 × 400 mm
Maximum Cutting Length: 3400 mm
Maximum Cutting Thickness (90°): 30 mm
Main Saw Blade Speed: 4500 / 6000 RPM
Scoring Blade Speed: 8500 RPM
Scoring Spindle Diameter: 20 mm
Automatic Blade Tilting: 45° to 90°
Automatic Blade Height Adjustment
Servo Automatic Rip Fence: Up to 1300 mm
12-inch Touch Screen Control Panel
Machine Dimensions: 2300 × 1150 × 1200 mm
Sliding Table Dimensions: 3500 × 500 × 400 mm
Machine Weight: 950 kg
Standard Accessories: 2 Cross Fence DRO, 1 Right Fence DRO
Successful Installation of the F45DK Panel Saw Machine

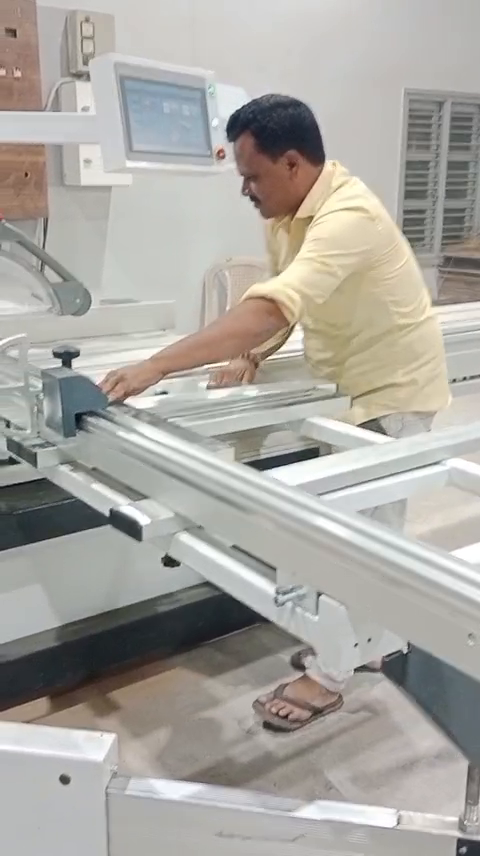

Our experienced service engineer installed, tested, and commissioned the F45DK Panel Saw Machine on-site in Bangalore. The blade height, tilting mechanism, and servo rip fence were carefully calibrated for accurate, repeatable cutting from the very first day.
Support
Beyond installation, our service engineer provided complete guidance on machine operation, daily maintenance, safety procedures, and routine troubleshooting. Hands-on operator training was conducted using the 12-inch touch screen control panel so the customer's team could operate the machine confidently and achieve maximum productivity.
Customer Feedback
"I'm happy with SENBSEN's service and machines. The engineer explained everything in detail, and I'm fully satisfied with my decision to purchase this machine from SENBSEN." — Bijendra Thakur, Bangalore
Project Successfully Completed
With installation, testing, and operator training complete, the F45DK Panel Saw Machine is now fully operational at the customer's facility in Bangalore, ready to support high-volume, precision panel cutting.
Benefits for the Customer
After this installation, the customer can now benefit from:
Faster, more accurate panel cutting up to 3400 mm in length
Clean scoring cuts with reduced chipping
Flexible blade tilting from 45° to 90° for varied cutting needs
Precise, repeatable cuts using the servo automatic rip fence
Easy machine control via the 12-inch touch screen panel
Improved production efficiency and reduced material wastage
Why Choose SENBSEN?
SENBSEN is a trusted manufacturer and supplier of advanced CNC woodworking machine and industrial woodworking equipment across India. We offer complete manufacturing solutions — machine selection, installation, operator training, technical support, and reliable after-sales service.
Whether you need a Panel Saw Machine, Edge Banding Machine, Drilling Machine, or a complete CNC woodworking production line, SENBSEN delivers high-performance machinery built to improve productivity and manufacturing efficiency.
Frequently Asked Questions (FAQs)
1. What is the F45DK Panel Saw Machine used for?
It is used for accurate, high-speed panel cutting of plywood, MDF, and particle boards in furniture and cabinet manufacturing.
2. What is the maximum cutting length of the F45DK Panel Saw Machine?
The machine supports a maximum cutting length of 3400 mm, with a sliding table size of 3200 × 400 mm.
3. Does SENBSEN provide installation and operator training for the Panel Saw Machine? Yes. SENBSEN provides complete machine installation, testing, commissioning, operator training, and after-sales technical support.
4. Which industries use the SENBSEN F45DK Panel Saw Machine?
It is widely used by furniture manufacturers, modular furniture producers, cabinet manufacturers, and woodworking production factories.
5. Why should manufacturers choose SENBSEN?
SENBSEN offers a full range of industrial woodworking machines — including Panel Saw Machines, Edge Banding Machines, CNC Woodworking Machines, and Drilling Machines — along with expert installation, advanced technology, operator training, and dedicated customer support to help businesses improve productivity and product quality.
Conclusion
The successful installation of the F45DK Panel Saw Machine in Bangalore reflects SENBSEN's commitment to quality, precision, and customer satisfaction. By combining advanced CNC woodworking machinery with expert installation, operator training, and dependable after-sales support, we help manufacturers build more efficient, productive, and profitable factories.
If you're planning to upgrade your woodworking factory with a Panel Saw Machine, Edge Banding Machine, Drilling Machine, or complete industrial woodworking solutions, SENBSEN is your trusted partner.
