Installation Overview
SENBSEN recently completed a major machine installation at the furniture manufacturing unit of Mr. Vikas, located in Bangalore. This installation marks another step forward in SENBSEN's mission to bring precision, efficiency, and high-quality German-inspired Chinese woodworking technology to furniture manufacturers across India.
As part of this setup, three critical machines were installed to strengthen Mr. Vikas's production capabilities — a 60 Ton Cold Press Machine, a Sliding Table Saw Machine, and an Automatic Edge Banding Machine. Together, these machines cover three essential stages of furniture production: pressing, panel cutting, and edge finishing — giving Mr. Vikas a well-rounded, production-ready setup.
📺 Watch the installation video: SENBSEN Machine Installation, Bangalore
60 Ton Cold Press Machine (SCP48/60/1)
The SCP48/60/1 Cold Press Machine installed at the unit is built for reliable pressing applications in furniture and woodworking production. It offers a spacious working area of 2500 × 1250 mm (with customization available for different panel sizes) and delivers a maximum pressure capacity of 60 tons, with a maximum opening of 1000 mm.
Powered by a 4 kW motor and equipped with an Ø90 × 2 pcs oil cylinder configuration, the machine runs on a standard 415V / 50Hz / 3 Phase supply. Weighing 2200 kg with an overall footprint of 3000 × 1250 × 2500 mm, this cold press is built to handle a wide range of panel and furniture pressing applications with consistent, even pressure — an essential requirement for quality lamination and bonding work.

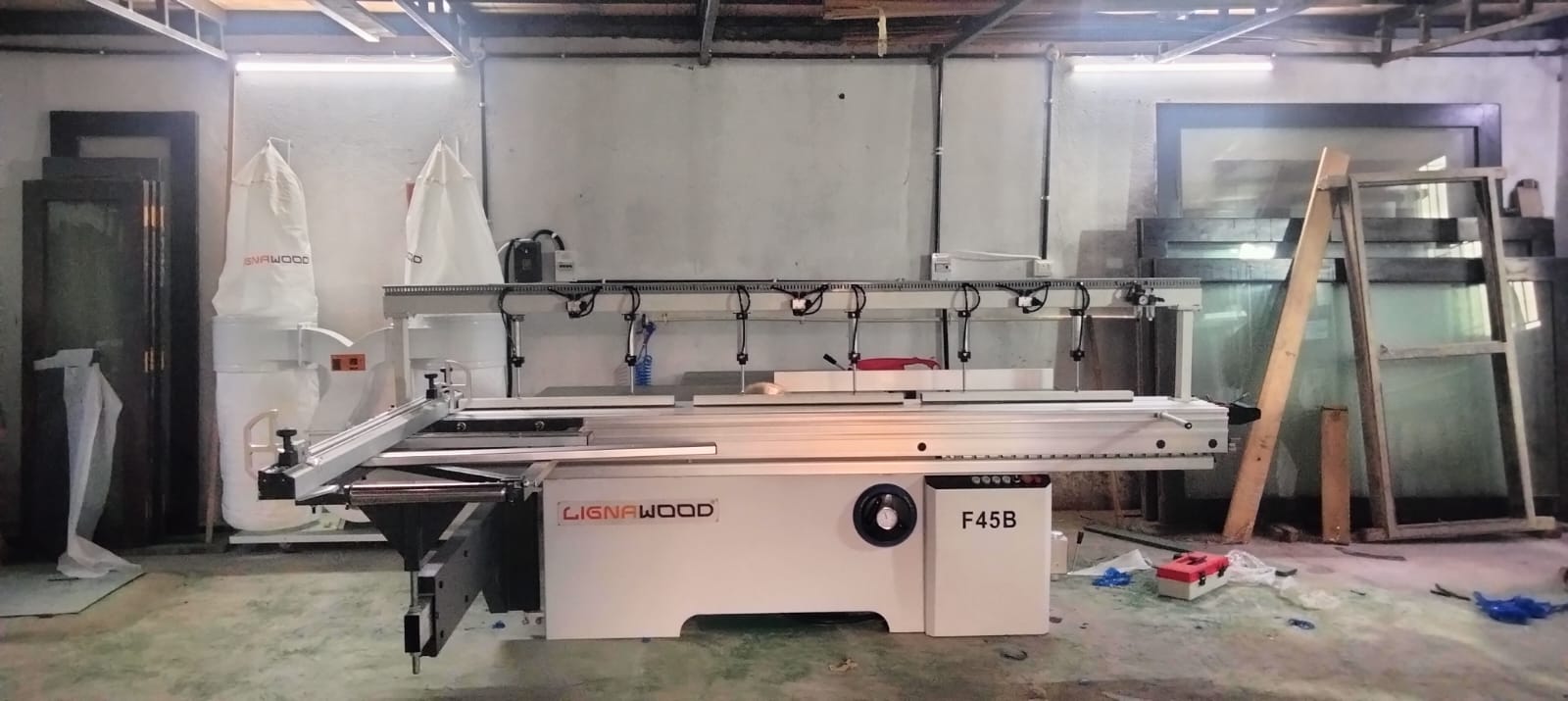

Sliding Table Saw Machine
For accurate and efficient panel cutting, Mr. Vikas's setup now includes a Sliding Table Saw Machine designed to deliver clean, precise cuts across different wood-based panels. The machine is fitted with a main saw blade of up to 300 mm diameter and a 120 mm scoring saw blade, ensuring smooth, chip-free cutting edges.
It features a 30 mm main saw spindle running at 4,000/5,000 RPM, along with a 20 mm scoring saw spindle operating at 7,500 RPM. With support for a maximum working length of 3,200 mm and the ability to handle material up to 80 mm thick, this saw is well suited for cutting large furniture panels and boards. Running on a total power of 6.6 kW, and built with a sturdy 650 kg frame, the machine offers excellent stability during demanding cutting operations. Its overall dimensions of 3400 × 2600 × 1000 mm make it a strong fit for professional furniture manufacturing environments.
SBS-658 Automatic Edge Banding Machine
Completing the line-up is the SBS-658 Automatic Edge Banding Machine, engineered for smooth and consistent edge finishing on furniture panels. As per the machine's nameplate specifications, it carries a total electrical power rating of 13.7 kW and runs on a 415V, three-phase, 50Hz electrical supply.
With overall dimensions of approximately 6.0 m in length, 0.71 m in width, and 1.8 m in height, the SBS-658 is designed to integrate smoothly into a production floor, delivering efficient, automated edge banding for higher throughput and finish quality.
Installation and Service Support
The SENBSEN technical team carried out a complete on-site installation at Mr. Vikas's Bangalore facility, ensuring all three machines were properly set up, calibrated, and tested before handover. From uncrating and positioning heavy equipment like the 60 Ton Cold Press to aligning the Sliding Table Saw for precision cutting and fine-tuning the SBS-658 edge bander, every step followed SENBSEN's standard installation checklist.
Our field engineers also conducted operator training sessions at the site, walking the production team through safe operation, routine maintenance, and troubleshooting basics — ensuring the unit could start production with confidence from day one.
Customer Feedback
Mr. Vikas shared positive feedback on the installation experience, highlighting the professionalism of the SENBSEN team and the smooth commissioning of all three machines. The straightforward handling of the cold press, the cutting accuracy of the sliding table saw, and the finish quality from the edge banding machine were all noted as strong first impressions from the new setup.
Customer Satisfaction
Customer satisfaction remains at the core of every SENBSEN installation. From the initial site assessment to final commissioning, the goal is always to ensure the customer's production line is up and running with minimal downtime. Vikas's installation reflects this approach — a coordinated effort between sales, technical, and service teams to deliver a dependable, ready-to-use machine setup.
Benefits for the Customer
With this new installation, Mr. Vikas's furniture unit now benefits from:
Stronger pressing capability with the 60 Ton Cold Press, supporting a variety of panel sizes and lamination needs
Precision panel cutting through the Sliding Table Saw, reducing material wastage and improving cut accuracy
Automated edge finishing via the SBS-658, boosting production speed and finish consistency
End-to-end support from SENBSEN's installation and service teams, right from setup to after-sales assistance
A more complete production line, covering pressing, cutting, and edge banding under one integrated setup
Why Choose SENBSEN?
SENBSEN has built a reputation among Indian furniture manufacturers for supplying reliable, high-performance woodworking machinery backed by strong on-ground service. A few reasons customers like Mr. Vikas choose SENBSEN include:
A wide range of machines covering the full furniture production process
On-site installation and operator training by experienced technical teams
Responsive after-sales service and spare parts support
Machines built for Indian factory conditions and production volumes
A growing base of satisfied customers across Karnataka, Kerala, Delhi, and Gujarat
FAQs
Q1. What is the pressure capacity of the SCP48/60/1 Cold Press Machine?
The SCP48/60/1 has a maximum pressure capacity of 60 tons, with a working area of 2500 × 1250 mm (customizable) and a maximum opening of 1000 mm.
Q2. What is the maximum material thickness the Sliding Table Saw can handle?
The Sliding Table Saw Machine can handle material up to 80 mm thick and supports a maximum working length of 3,200 mm.
Q3. What power supply does the SBS-658 Edge Banding Machine require?
The SBS-658 operates on a 415V, three-phase, 50Hz power supply, with a total electrical power rating of 13.7 kW.
Q4. Does SENBSEN provide installation and training support?
Yes, SENBSEN's technical team handles complete on-site installation, machine calibration, and operator training as part of every machine delivery.
Q5. Where is SENBSEN's machinery currently being used?
SENBSEN machines are actively installed and running at furniture manufacturing units across Karnataka, Kerala, Delhi, Gujarat, and other regions in India.
Conclusion
The installation at Mr. Vikas's Bangalore unit is a strong example of how SENBSEN's machines come together to support real, everyday furniture production needs — from pressing and cutting to edge finishing. With reliable machinery, dedicated installation support, and a focus on long-term customer satisfaction, SENBSEN continues to be a trusted partner for furniture manufacturers looking to scale up their production capabilities.
