A Pin Router Machine is a workhorse in any furniture or woodworking unit — churning out identical chair legs, curved arms, inlays, and custom-shaped panels day after day. But like any precision machine, it only performs as well as it's maintained. Neglect the collet, ignore the guide pin, or let sawdust pile up around the motor, and you'll see it in your cutting accuracy, your tool life, and eventually your production timelines.
Here are 10 practical maintenance tips to keep your Pin Router Machine running accurately and your cutting tools lasting longer.

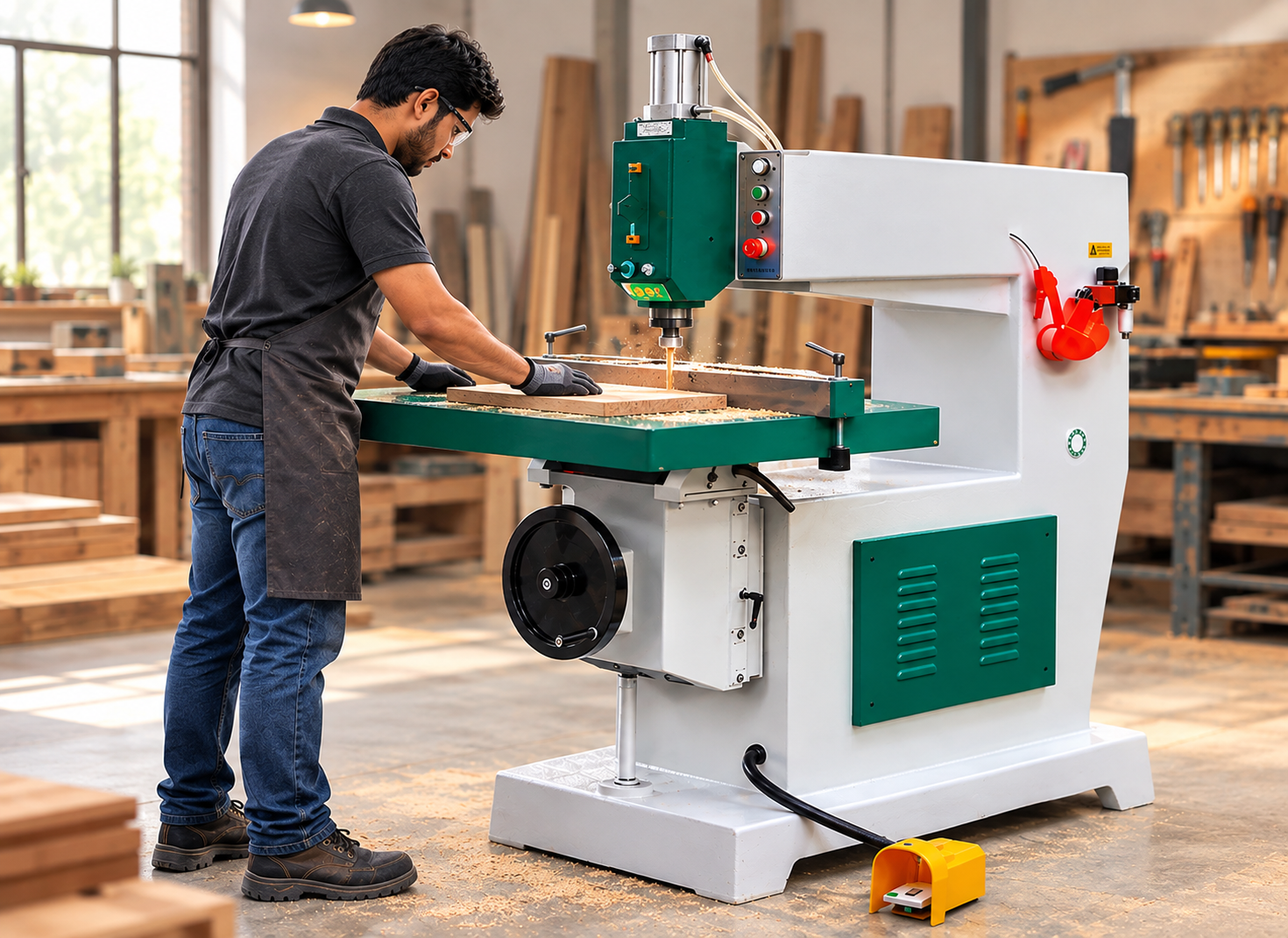

🎥 Watch: Pin Router Machine in action
1. Clean the Collet and Spindle Regularly
Sawdust, resin, and pitch build up inside the collet and spindle over time. This buildup stops the router bit from seating correctly, causing runout and vibration. A soft brass brush along with a proper resin remover, used on a regular schedule, keeps this area functioning as it should.
2. Inspect the Collet for Wear
Collets are wear parts, not permanent fixtures. A worn collet loses its grip on the router bit and lets it wander out of alignment. Watch for scoring marks on the bit shank, slipping, or unusual vibration — these are your early warning signs. Replace collets on the schedule your machine manufacturer recommends, not after they've already failed.
3. Match the Guide Pin with the Cutter Diameter
The guide pin needs to be correctly sized and aligned with both the router cutter and the template. Get this wrong, and you'll see uneven workpiece feeding and extra lateral pressure on the cutter — which shows up as inaccurate cuts and faster tool wear.
4. Use the Correct Feed Rate and RPM
Feed rate and spindle speed have to work together. Feed too slowly and the cutter rubs against the material, generating excess heat. Feed too fast and you overload both the motor and the tool. Stick to the settings recommended by your cutter and machine manufacturer.
5. Check and Lubricate the Guide Pin Mechanism
The guide pin should raise and lower smoothly. A sticky or jerky elevator mechanism can cause sudden, uncontrolled movement mid-operation — which directly affects your cutting accuracy. Inspect and lubricate it as part of your regular maintenance schedule.
6. Keep Cooling Vents and Air Filters Clean
The motor on a Pin Router Machine runs hot, and sawdust around the vents, fans, and filters restricts airflow. Left unchecked, this raises motor temperature and shortens the life of your machine. A quick clean of these areas goes a long way toward reliable, consistent performance.
7. Avoid Overtightening the Collet Nut
More torque isn't better here. Overtightening can damage the collet, strip spindle threads, and contribute to runout. Use the correct wrenches and tighten firmly, per the manufacturer's guidance — and never tighten an empty collet without a cutter shank inserted.
8. Clean Router Bits with a Suitable Resin Remover
Especially when cutting plywood, MDF, and other engineered wood, resin and adhesive residue builds up fast on router bits. Regular cleaning with a cutter-appropriate solution maintains cutting performance and keeps heat buildup in check.
9. Check Table and Spindle Alignment
On any Pin Router Machine, the spindle should stay perfectly perpendicular to the table. Misalignment leads to uneven cuts, inconsistent profiles, and cutters that wear out before their time. Check this periodically with proper measuring equipment, or get a qualified technician to verify it.
10. Store Router Bits Properly
Carbide cutting edges are hard, but they chip easily on impact. Don't toss bits loose into a drawer where they can knock against each other. Individual cases, dedicated holders, or a proper storage block will protect your cutting edges between uses.
Common Pin Router Machine Problems to Watch For
Even with good maintenance habits, keep an eye out for these common Pin Router Machine problems:
Template wear — worn template edges throw off the accuracy of every part cut from them
Spindle vibration — from worn bearings, incorrectly installed cutters, or unbalanced tools
Dust accumulation — interferes with moving parts and machine operation
Guide pin misalignment — causes the finished part to deviate from the template
Tool wear — dull or damaged cutters mean rough surfaces, burn marks, and excess heat
Why Choose SENBSEN
At SENBSEN, our Pin Router Machines are built for furniture manufacturers who need consistent, template-based accuracy at production scale — whether that's curved chair components, custom inlays, or batch-produced panels. Beyond the machine itself, our team supports you with proper setup, operator training, and maintenance guidance so you get the tool life and precision your production line depends on. As a Bengaluru-based importer and distributor with an established service network, we're positioned to support you well beyond the point of sale.
FAQs
How long does a Pin Router Machine typically last with good maintenance?
With regular cleaning, timely collet replacement, and correct alignment checks, a well-maintained Pin Router Machine can run reliably for many years of production use.
How often should I clean the collet and spindle?
As a general rule, clean them at the end of every production run or shift, and do a deeper clean weekly depending on your usage volume and the materials you're cutting.
What are the signs that my collet needs replacing?
Scoring marks on the bit shank, the bit slipping during operation, or noticeable vibration are all signs the collet has worn out and needs replacing.
Can incorrect feed rate damage my router bits?
Yes. Feeding too slowly generates excess heat from friction, while feeding too fast overloads the motor and the cutter — both shorten tool life significantly.
How do I know if my spindle and table are misaligned?
Uneven cuts, inconsistent profiles across identical parts, and premature tool wear are all indicators. A precision check with proper measuring equipment, or an inspection by a qualified technician, will confirm it.
What's the correct way to store router bits?
Never store them loose in a drawer. Use individual protective cases, dedicated holders, or a storage block to prevent the carbide edges from chipping on impact.
Conclusion
A Pin Router Machine rewards good maintenance with consistent, accurate output and a longer tool life — and punishes neglect just as reliably. Building these 10 practices into your regular maintenance routine, from collet care to proper bit storage, will keep your machine running at its best and your production costs in check.
